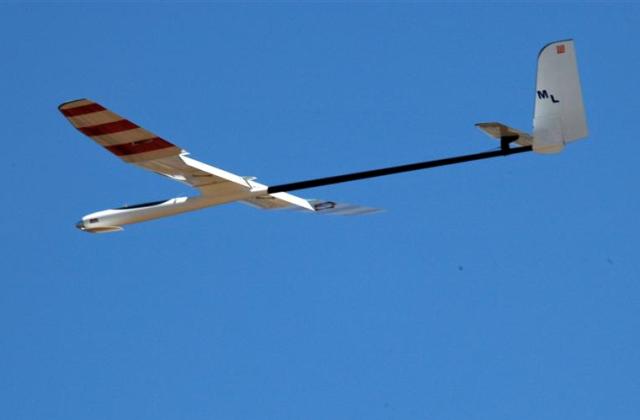

HC-TS Top Thermal 3m ARF ALES-F5J-LMR e-Glider

Description:

HC-TS Top Thermal 3m ARF ALES-F5J-LMR e-Glider

This model have been reviewed by FLY RC Magazine, Dec. 2013 issue, Page 76,77,78.

http://www.flyrc.com/

Technical Details:

Wingspan: 3000mm (118 in.)

Wing Area: 54 dm2 (837 sq.in.)

Wing Airfoil: MH32

Wing load: 33.3grs/dm2 (11.1 oz/sq.ft.)

AUW: 1800 grs (63.4 oz)

Controls: Rudder, Elevator, Ailerons, Flaps, Motor

Recommended optional equipment to complete:

* Six or more channels radio system (computer type preferred)

* 350 to 600 watt, brushless outrunner motor (BlackMagic 2820/06)

* 60-70A Brushless ESC (FlightPower 60A)

* 11.1-14.8V 45C 1300-2200mAh LiPo Battery Pack

* Servos: 8-10mm thick, Digital (KST DS-113 and DS-245)

* Folding Propeller (AeroNaut 14-6 to 15-6)

* 40mm Aluminum Spinner for folding prop

Vacuum molded wing and stab/rudder with high density blue foam as the core material.

Lots of carbon wing reinforcements.

Carbon hollow molded fuselage pod with carbon tailboom.

Full flying stab

Can be used as an e-Glider or just pure glider.
